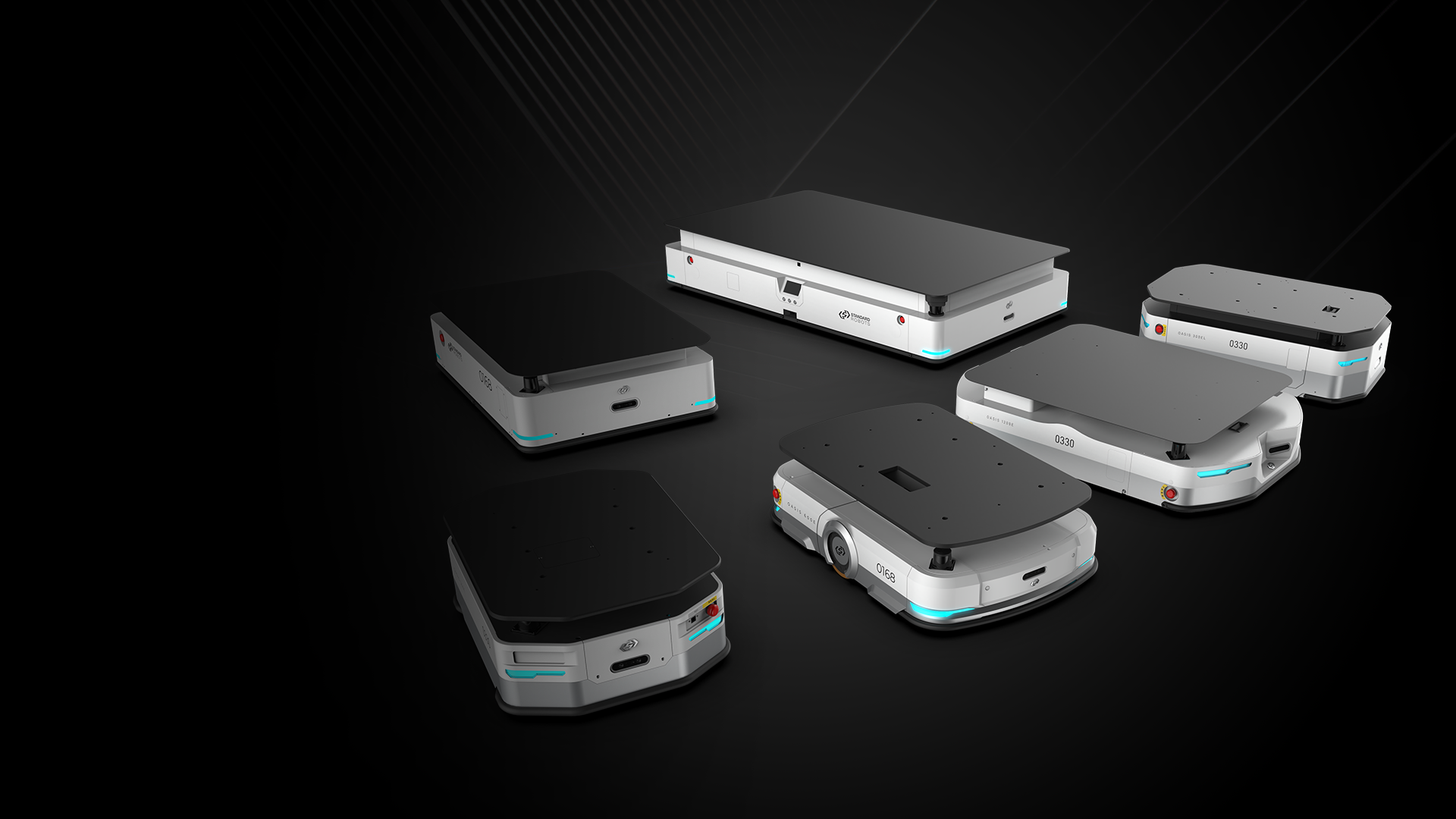

We focus on providing highly reliable and precise mobility capabilities. Our series of standardized platforms include both differential and omnidirectional types, with a load capacity range of 300-2000kg, allowing for flexible selection based on specific needs. We offer open electrical interfaces and communication protocols, support secondary development, and provide accompanying tool documentation. This empowers integrators with automation capabilities to focus more on end applications. These applications include industrial classic embodied robots, transport robots, forklift robots, and other forms of robots, offering more specialized applications for the end users.

Products

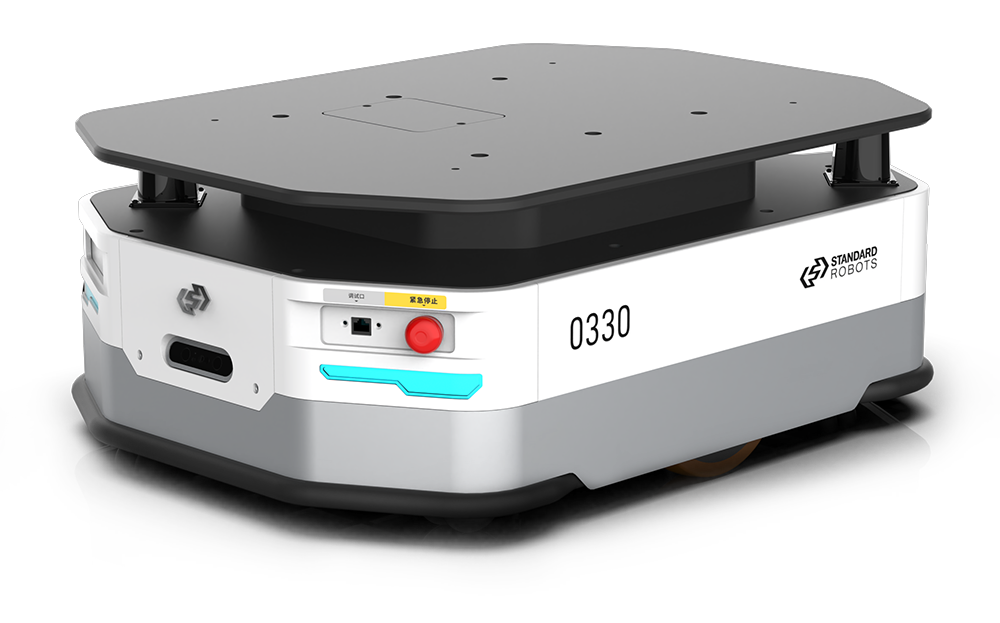

OASIS-300E
OASIS-300E
A 300kg-rated differential drive mobile robot platform with standard electrical interfaces and communication protocols. It supports secondary integration and development of functional applications by customers on the mobile robot platform, such as collaborative robotic arm composite applications, roller conveyor applications, and belt conveyor applications.
Max. Speed
1.5 m/s
Duration
8 Hours
Payload
300kg
Dimensions
740*545*270mm
Rotating Radius
390mm

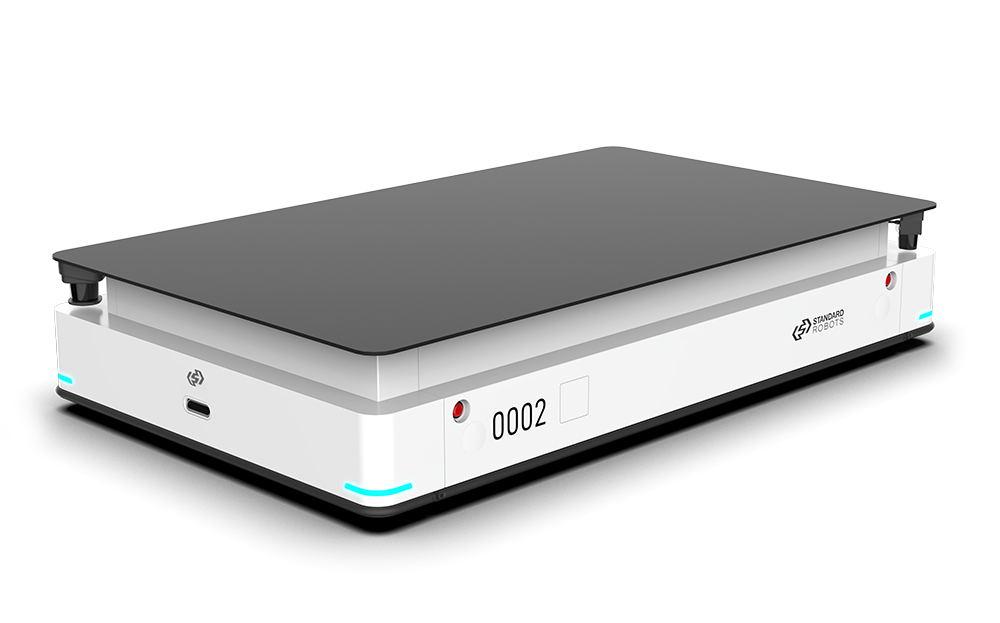

OASIS-300EL
OASIS-300EL
A 300kg-rated differential drive embodied robot platform, featuring a highly stable chassis, standard electrical interfaces, and communication protocols. It supports secondary integration and development of functional applications by customers on the mobile robot platform.
Max. Speed
1.5 m/s
Duration
8 Hours
Payload
300kg
Dimensions
950*620*292mm
Rotating Radius
500mm

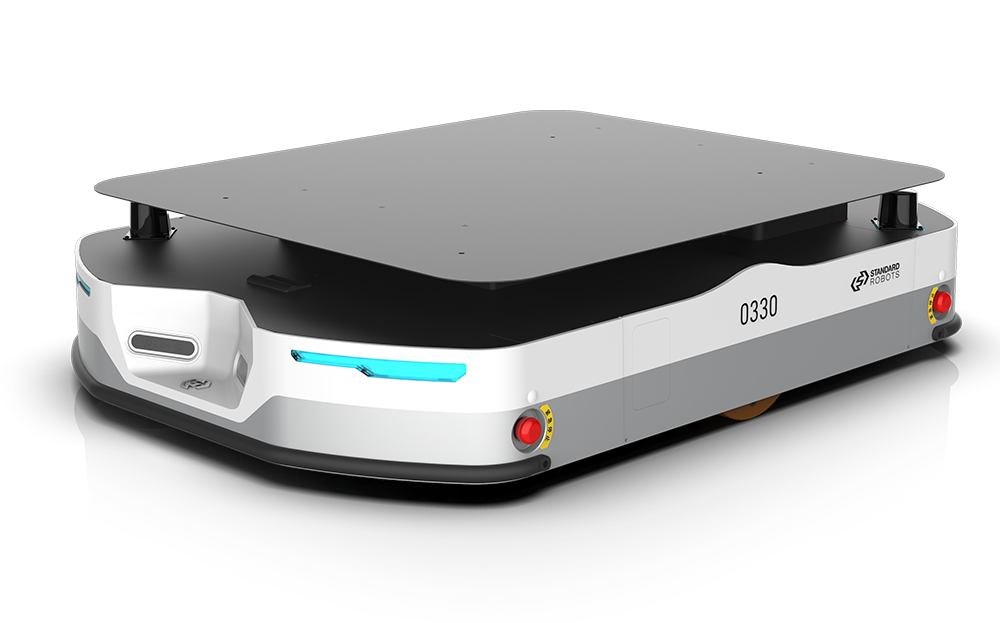

OASIS-600E
OASIS-600E
A 600kg-rated differential drive mobile robot platform with standard electrical interfaces and communication protocols. It supports secondary integration and development of functional applications by customers on the mobile robot platform, such as collaborative robotic arm composite applications, roller conveyor applications, and belt conveyor applications.
Max. Speed
1.5 m/s
Duration
8 Hours
Payload
600kg
Dimensions
948*635*248mm
Rotating Radius
500mm

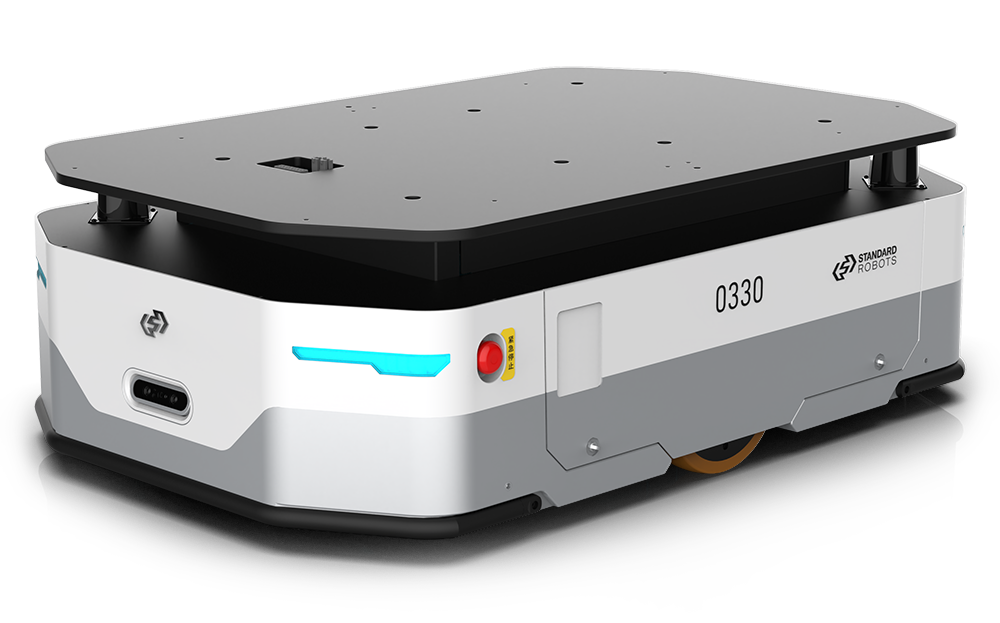

OASIS-600EL
OASIS-600EL
A 600kg-rated differential drive mobile robot platform with standard electrical interfaces and communication protocols. It supports secondary integration and development of functional applications by customers on the mobile robot platform, such as large collaborative robotic arm composite applications, roller conveyor applications, and belt conveyor applications.
Max. Speed
1.5 m/s
Duration
8 Hours
Payload
600kg
Dimensions
1150*820*246mm
Rotating Radius
600mm

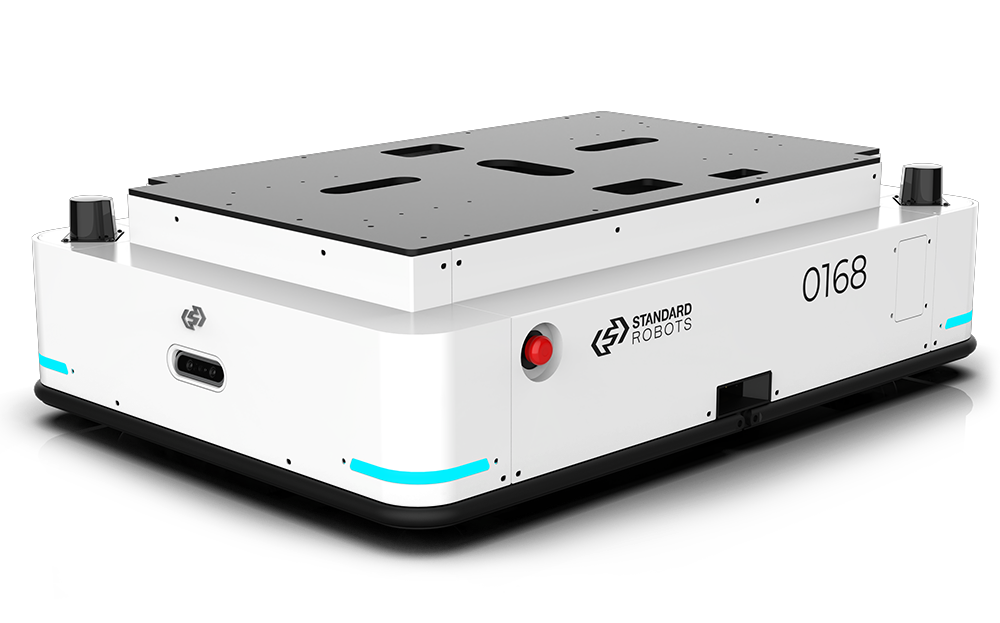

OASIS-1200E
OASIS-1200E
A 1200kg-rated differential drive mobile robot platform with standard electrical interfaces and communication protocols. It supports secondary integration and development of functional applications by customers on the mobile robot platform, such as large collaborative robotic arm composite applications, roller conveyor applications, and belt conveyor applications.
Max. Speed
1.5 m/s
Duration
8 Hours
Payload
1200kg
Dimensions
1150*820*246mm
Rotating Radius
600mm
OASIS-2000E
OASIS-2000E
A 2000kg-rated differential drive mobile robot platform with standard electrical interfaces and communication protocols. It supports secondary integration and development of functional applications by customers on the mobile robot platform, such as large collaborative robotic arm composite applications, roller conveyor applications, and belt conveyor applications.
Max. Speed
1.5 m/s
Duration
8 Hours
Payload
2000kg
Dimensions
1150*820*246mm
Rotating Radius
600mm
OASIS-1000E-4WD
OASIS-1000E-4WD
A 1000kg-rated omnidirectional mobile robot platform with standard electrical interfaces and communication protocols. It supports secondary integration and development of functional applications by customers on the mobile robot platform, such as large collaborative robotic arm composite applications, roller conveyor applications, and belt conveyor applications.
Max. Speed
1.5 m/s
Duration
8 Hours
Payload
1000kg
Dimensions
1000*700*283mm
Rotating Radius
590mm
OASIS-2000E-4WD
OASIS-2000E-4WD
A 2000kg-rated omnidirectional mobile robot platform with standard electrical interfaces and communication protocols. It supports secondary integration and development of functional applications by customers on the mobile robot platform, such as large collaborative robotic arm composite applications, roller conveyor applications, and belt conveyor applications.
Max. Speed
1.5 m/s
Duration
8 Hours
Payload
2000kg
Dimensions
2000*1200*350mm
Rotating Radius
1145mm
